Built for Every PoE Need

The Ultimate Portfolio with Over 130 Models

가장 완전하고 유연하며 확장 가능한 산업용 PoE 포트폴리오

산업용 PoE분야의 선도 기업인 Moxa는 안정적인 전원 공급과 뛰어난 연결 지속성을 보장하는, 포괄적이고 확장 가능한 PoE 스위치 및 액세서리 포트폴리오를 제공합니다.


AI, IIoT, 그리고 데이터 기반 기술의 급속한 도입과 확산에 따라, PoE 기반의 견고한 엣지 연결에 대한 수요가 지속적으로 증가하고 있습니다.


시스템을 적시에 구축하기 위해 PoE의 설치와 관리 단순화가 점점 더 중요해지는 가운데, MOXA의 최신 PoE제품 시리즈는 높은 유연성, 효율성, 간편한 설치를 모두 갖춰 미션 크리티컬 환경에서도 안정적인 성능을 보장합니다.

PoE Product Selection Guide

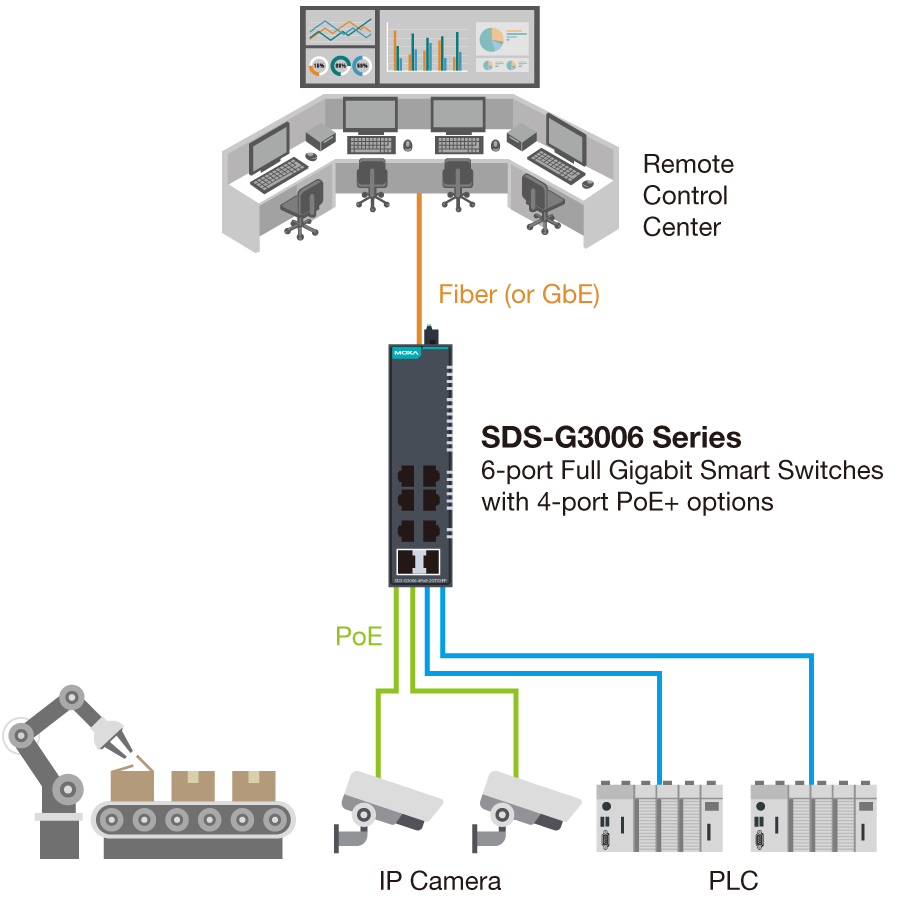

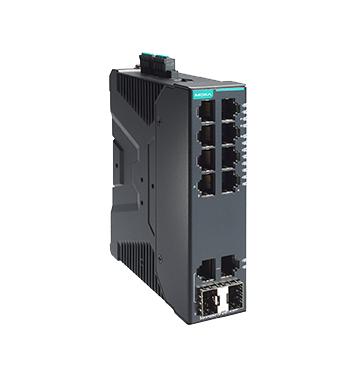

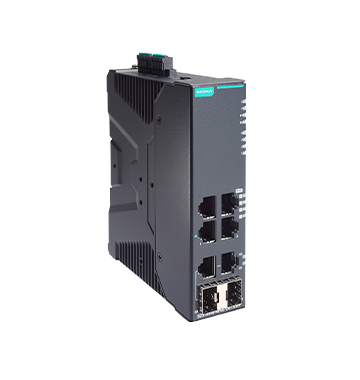

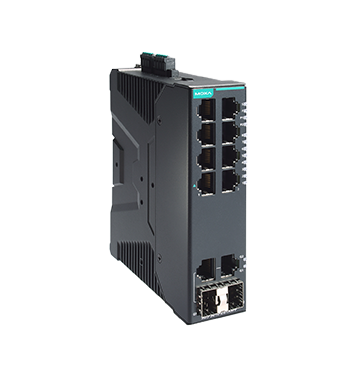

SDS-3006/G3006/3010/G3010 Series
PoE+ 옵션이 포함된 풀 기가비트 스마트 이더넷 스위치
  • 6/10-port FE/GbE with 4/8 PoE+ options
  • 고출력 모드 기준, 포트당 최대 36W PoE+ 전력공급
  • Moxa Smart PoE : PD 장애 자동 감지 및 자동 재부팅 기능으로 안정적인 운영 보장
  • SNMP 및 MXview One을 통한 PoE전력 상태 원격 모니터링 지원
  • 이중화 DC전원 입력으로 안정적인 전원 공급

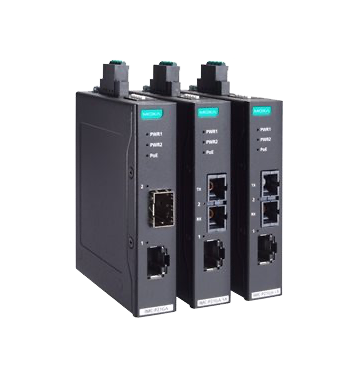

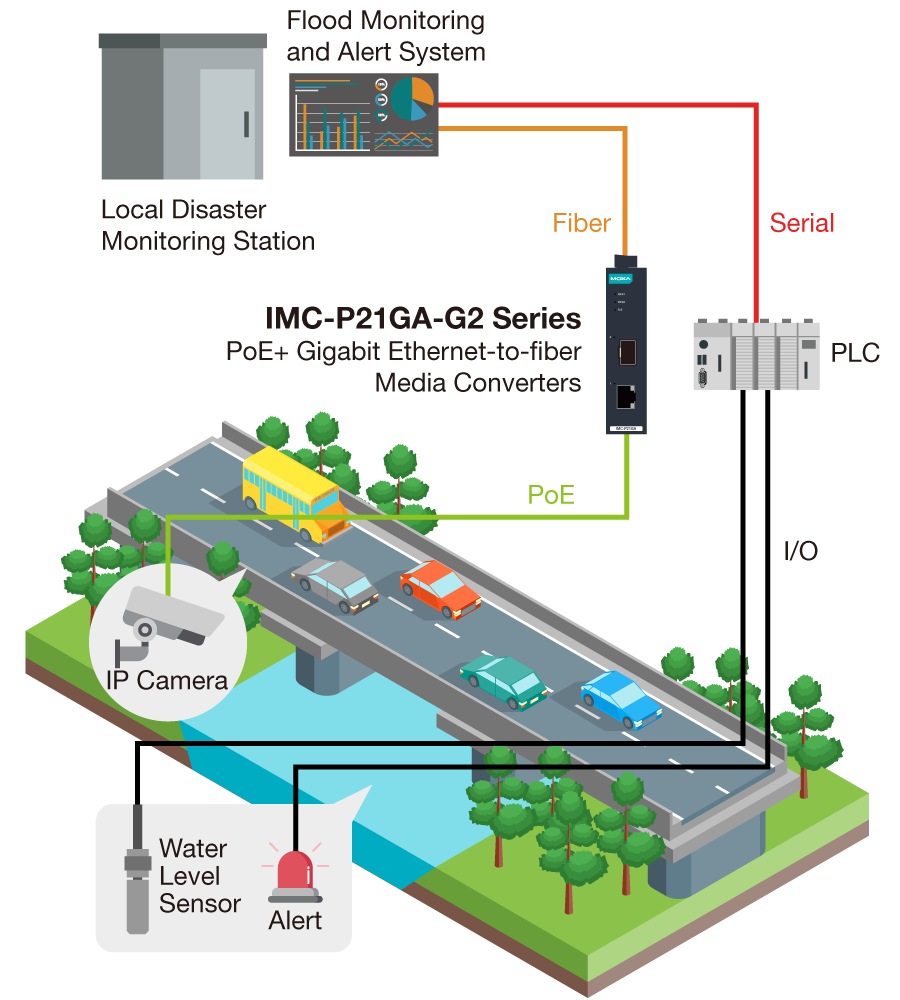

IMC-P21A-G2/P21GA-G2 Series
PoE+지원 Fast/Gigabit 이더넷-광 미디어 컨버터
  • 고출력 모드 기준, PoE+ 포트당 최대 36W 전력 공급
  • 최대 80km 거리까지 높은 EMI(전자기 간섭)환경에서도 안정적인 이더넷-광 변환
  • 이중화 DC전원 입력으로 안정적인 전원 공급
  • store-and-forward 와 pass-through 전송 모드 모두 지원

Moxa PoE Solutions

PoE Product
Selection Guide

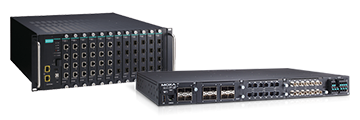

Rackmount Managed Switches

Layer
Moxa Solutions
PoE Port
Ethernet Port
PoE Output
(Per Port)
Dual Power Inputs
Operating Temp. Range
Certification
Layer 2/3 Layer 2/3 Layer 3 Layer 2 Layer 2

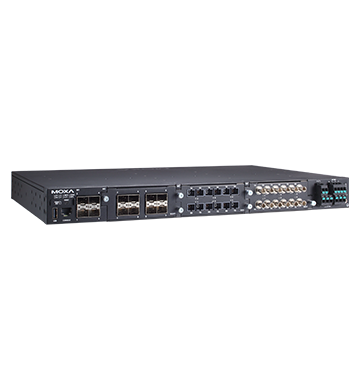

RKS-G4028 Series

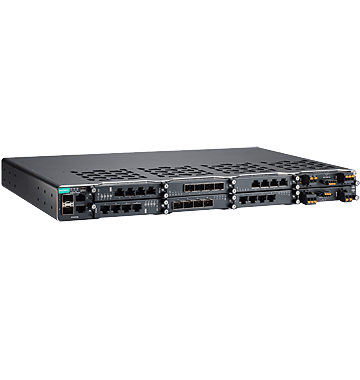

PT-G7828/ G7728 Series

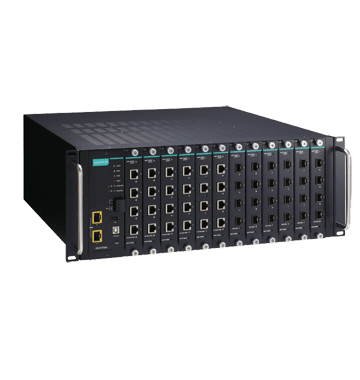

ICS-G7848A/ G7850A/ G7852A Series
ICS-G7748A/ G7750A/ G7752A Series

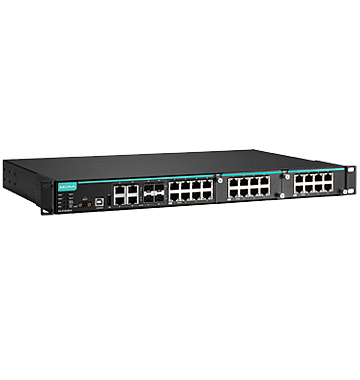

IKS-6728A Series
Up to 24 x PoE++ / GPoE++ Up to 24 x PoE+ / GPoE+ 48 x PoE+ 48 x PoE+ Up to 24 x PoE+
Up to 28 x GE 28 x GE 0/2/4 x 10GE + 48 x GE 0/2/4 x 10GE + 48 x GE 4 x GE + 24 x FE
90 W 36 W 36 W 36 W 36 W
LV models: 24/48 VDC HV models: 110/220 VAC&VDC
External PoE power models: 48 VDC 		48 VDC for PoE+ ports and system power
110/220 VAC for system power
-40 to 75°C -40 to 85°C -10 to 60°C -10 to 60°C -40 to 75°C
IEC-61850-3, IEEE 1613, EN 50121-4 IEC-61850-3, EN-50121-4 EN-50121-4 EN-50121-4 EN-50121-4


NOTE: Refer to the individual product datasheets on the Moxa website for the most updated specifications and features. Or click here to learn more about Moxa PoE switches.

Madular Managed Switches

Layer
Moxa Solutions
PoE Port
Ethernet Port
PoE Output
(Per Port)
Dual Power Inputs
Operating Temp. Range
Certification
Layer 2 Layer 3 10GE Layer 2 10GE Layer 3

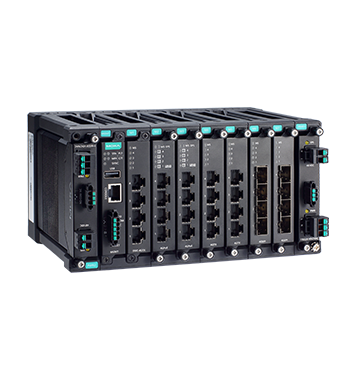

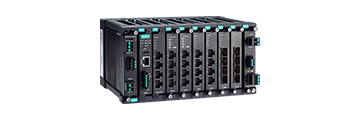

MDS-G4012/G4020/G4028 Series
MDS-G4012-L3/G4020-L3/G4028-L3 Series
MDS-G4012-4XGS/ G4020-4XGS/G4028-4XGS Series
MDS-G4012-L3-4GXS/ G4020-L3-4GXS/G4028-L3-4GXS Series
8/16/24 x PoE/GPoE+
4 x GE + up to 24 x FE/GE ports modules 4 x 10GE + up to 24 x FE/GE ports modules
36W
LV models: 24/48 VDC
HV models: 110/220 VAC&VDC
External PoE power models: 48 VDC
Standard temp. models: -10 to 60°C
Wide temp. models: -40 to 75°C
IEC-61850-3, IEEE 1613, EN 50121-4, Class I Division 2, ATEX, NEMA IEC-61850-3, IEEE 1613, EN 50121-4, NEMA


NOTE: Refer to the individual product datasheets on the Moxa website for the most updated specifications and features. Or click here to learn more about Moxa PoE switches.

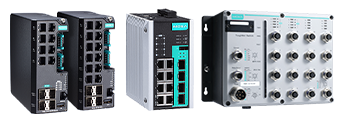

Managed Switches

Layer
Moxa Solutions
PoE Port
Ethernet Port
PoE Output
(Per Port)
Dual Power Inputs
Operating Temp. Range
Certification
Layer 2 Layer 2 Layer 2 Layer 2 Layer 2 Layer 2 Layer 2 Layer 2 Layer 2

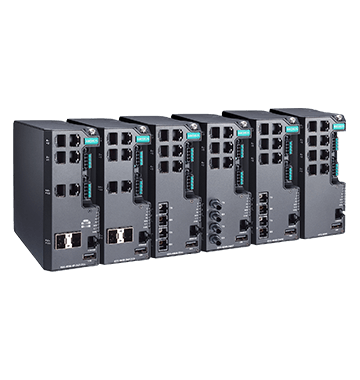

EDS-4008 Series

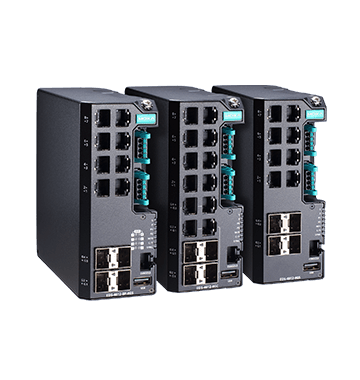

EDS-4012 Series

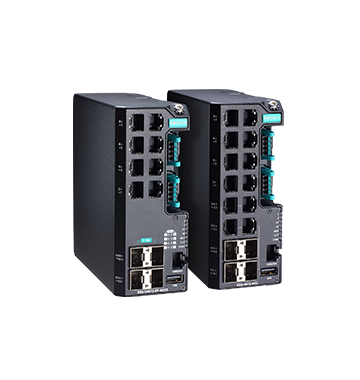

EDS-G4012 Series

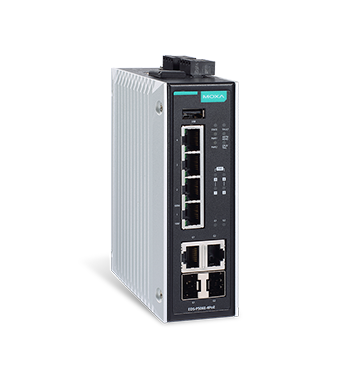

EDS-P506E Series

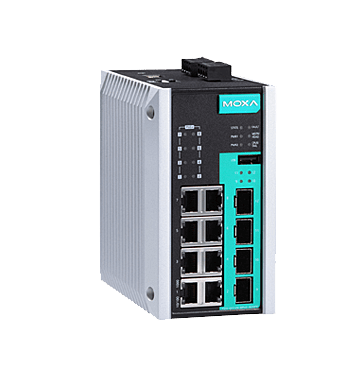

EDS-G512E Series

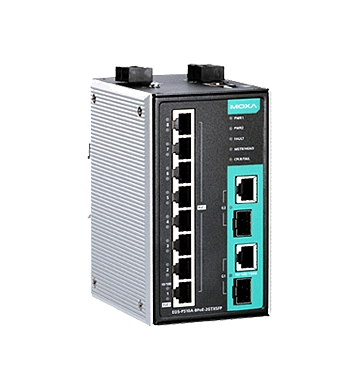

EDS-P510A Series

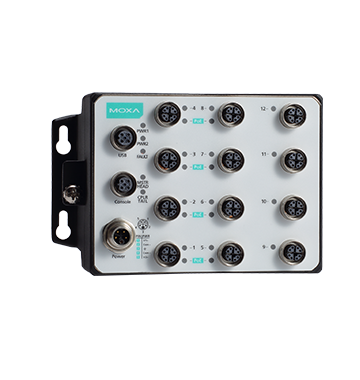

TN-G6500 Series

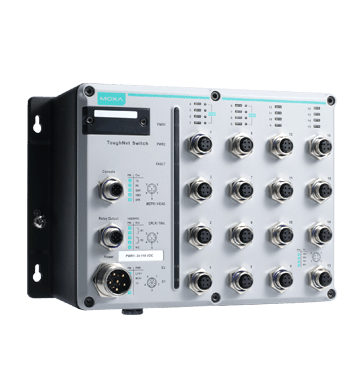

TN-5500A Series

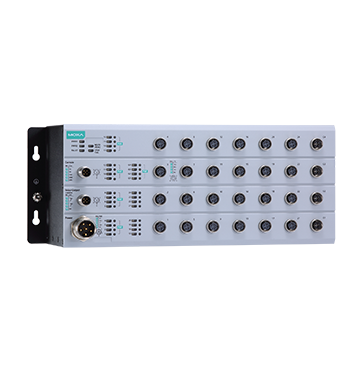

TN-4500A Series
4 x PoE++ 8 x PoE++ 8 x GPoE++ 4 x PoE+ 8 x GPoE+ 8 x PoE+ 8 x GPoE+ 8 x PoE+ Up to 16 x PoE+
8 x FE + up to 4 x GE uplink ports or 2 x SFP ports 4 x GE + 8 x FE 12 x GE + up to 4 x GE or 2.5 GE SFP ports 4 x FE + 2 x GE or SFP 12 x GE 8 x FE + 2 x GE or SFP 12 x GE with push-pull M12 connectors 2 x GE + 8~18 x FE 4 x GE + 12/24 x FE
90 W 90 W 90 W 60 W 36 W 36 W 30 W 30 W 30 W
LV(A) models: 48 VDC
LV(B) models: 12/24/48 VDC 		LV(A) models: 48 VDC
LV(B) models: 12/24/48 VDC 		LV(A) models: 48 VDC
LV(B) models: 12/24/48 VDC 		12/24/48 VDC 48 VDC 48 VDC 24/36/48/72/96/110 VDC 24/36/48/72/96/110 VDC 24/36/48/72/96/110 VDC
Standard temp. models: -10 to 60°C
Wide temp. models: -40 to 75°C 		-40 to 70°C -40 to 75°C -40 to 70°C
IEC 62443-4-2, IEC-61850-3, IEEE 1613, EN 50121-4, NEMA TS2, Class I Division 2, ATEX, IECEx IEC 62443-4-2, IEC-61850-3, IEEE 1613, EN 50121-4, NEMA TS2, Class I Division 2, ATEX, IECEx IEC 62443-4-2, IEC-61850-3, IEEE 1613, EN 50121-4, NEMA TS2, Class I Division 2, ATEX, IECEx IEC 61850-3, IEEE 1613, EN 50121-4, NEMA TS2 IEC-61850-3, IEEE 1613, EN 50121-4, NEMA TS2*, ATEX*, Class I Division 2* EN-50121-4, Class I Division 2, NEMA TS2 EN 50121-4, EN 50155 EN 50121-4, EN 50155 EN 50121-4, EN 50155


* Only EDS-G512E-4GSFP model
Note: Refer to the individual product datasheets on the Moxa website for the most updated specifications and features. Or click here to learn more about Moxa PoE switches.

Smart Switches

Layer
Moxa Solutions
PoE Port
Ethernet Port
PoE Output
(Per Port)
Dual Power Inputs
Operating Temp. Range
Certification
Layer 2
SDS-3006 Series
SDS-G3006 Series
SDS-3010 Series
SDS-G3010 Series
4 x PoE+ 4 x GPoE+ 8 x PoE+ 8 x GPoE+
4 x FE+ 2 x GE or SFP 4 x GE + 2 x GE or SFP 8 x FE + 2 x GE or SFP 8 x GE + 2 x GE or SFP
36 W
12/24/48 VDC 12/24/48 VDC 48 VDC 48 VDC
Standard temp. models: -10 to 60°C
Wide temp. models: -40 to 75°C


NOTE: Refer to the individual product datasheets on the Moxa website for the most updated specifications and features. Or click here to learn more about Moxa PoE switches.

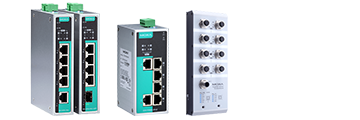

Unmanaged Switches

Layer
Moxa Solutions
PoE Port
Ethernet Port
PoE Output
(Per Port)
Dual Power Inputs
Operating Temp. Range
Certification
- - -

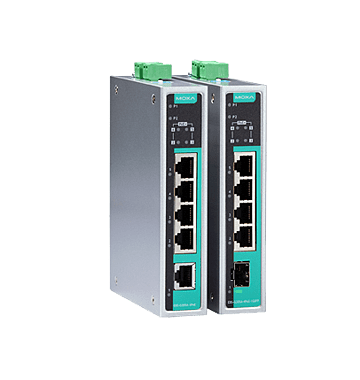

EDS-G205A Series

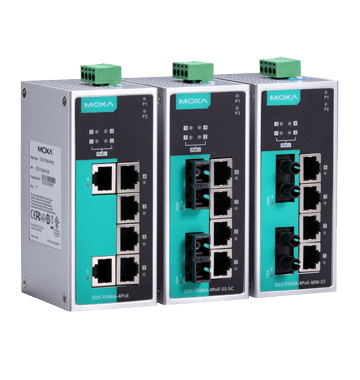

EDS-P206A Series

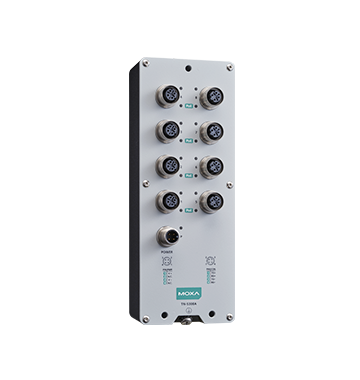

TN-5300A Series PoE Models


4 x GPoE+ 4 x PoE+ 8 x PoE+
5 x GE 6 x FE or 4 x FE + up to 2 x Fiber 8 x FE
30 W 30 W 30 W
12/24/48 VDC 12/24/48 VDC 24/36/48/72/96/110 VDC (Single input)
Standard temp. models: 0 to 60°C
Wide temp. models:-40 to 75°C 		Standard temp. models: -10 to 60°C
Wide temp. models:-40 to 75°C		 Standard temp. models: -40 to 70°C
EN-50121-4 EN 50121-4, EN 50155


NOTE: Refer to the individual product datasheets on the Moxa website for the most updated specifications and features. Or click here to learn more about Moxa PoE switches.

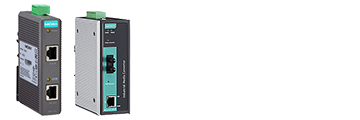

Plug-in Modules

Type
Moxa Solutions
PoE Port
Ethernet Port
PoE Output
(Per Port)
Dual Power Inputs
Operating Temp. Range
Certification
PoE+ Injectors PoE+ Injectors PoE Splitters Ethernet-to-fiber Media Converters

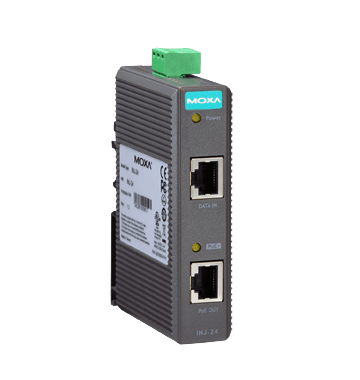

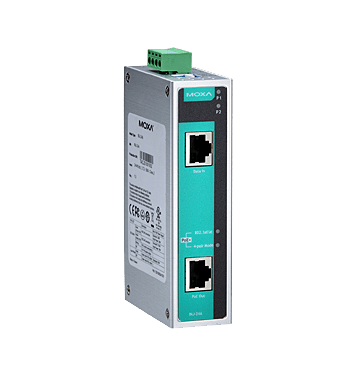

INJ-24A Series
INJ-24 Series
SPL-24 Series

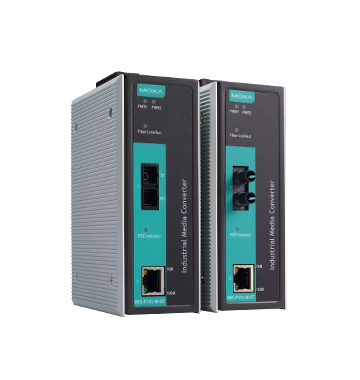

IMC-P101 Series
IMC-P21A-G2 Series
IMC-P21GA-G2 Series
1 x GPoE+ 1 x PoE+ 1 x PoE 1 x PoE+ 1 x PoE+ 1 x GPoE+
1 x GE 1 x FE 1 x FE 1 x FE 1 x FE Fiber 1 x GE Fiber
60 W 30 W 12.95 W 30 W 36 W 36 W
24/48 VDC(Single input) 24/48 VDC(Single input) - 48 VDC 48 VDC 48 VDC
Standard Temp.: 0 to 60°C
Wide Temp.:-40 to 75°C 		Standard temp. models: -10 to 60°C
Wide temp. models: -40 to 75°C
DNV-GL, ABS, LR, NK


NOTE: Refer to the individual product datasheets on the Moxa website for the most updated specifications and features. Or click here to learn more about Moxa PoE switches.

스마트한 PoE, 진화하는 산업 네트워크를 위한 선택

PoE는 현대 자동화 네트워크의 핵심 구성 요소입니다. 하지만 Moxa의 스마트 PoE기술은 그보다 한 단계 더 나아가 배포 속도 향상, 관리 효율화, 장기적인 에너지 운영의 최적화를 지원합니다.


Moxa Smart PoE 기술 자료(Tech Note)를 통해 PoE 네트워크를 어떻게 최적화할 수 있는지 확인할 수 있습니다.

TECH NOTE

Smarter Industrial PoE Deployment: Overcoming Voltage, Visibility, and Power Constraints

Smart Powering 스마트 전력 공급 기술은 비표준 장치를 포함한 모든 장치에 적절한 전력 공급을 보장

Smart Power Management 스마트 전력 관리 기능은 전력 차단, 스케쥴링, 경고알림을 자동화하여 시스템 안정성과 전력 부하 최적화 지원

Smart Power Diagnostics 스마트 전력 진단 기술은 PD 장치의 장애 감지, 자동 재부팅, 최적의 PoE 포트 설정을 제안여 원활한 설치 및 문제 해결 지원.

Moxa PoE 솔루션이 적용된 사업별 활용 사례

Digital Mining

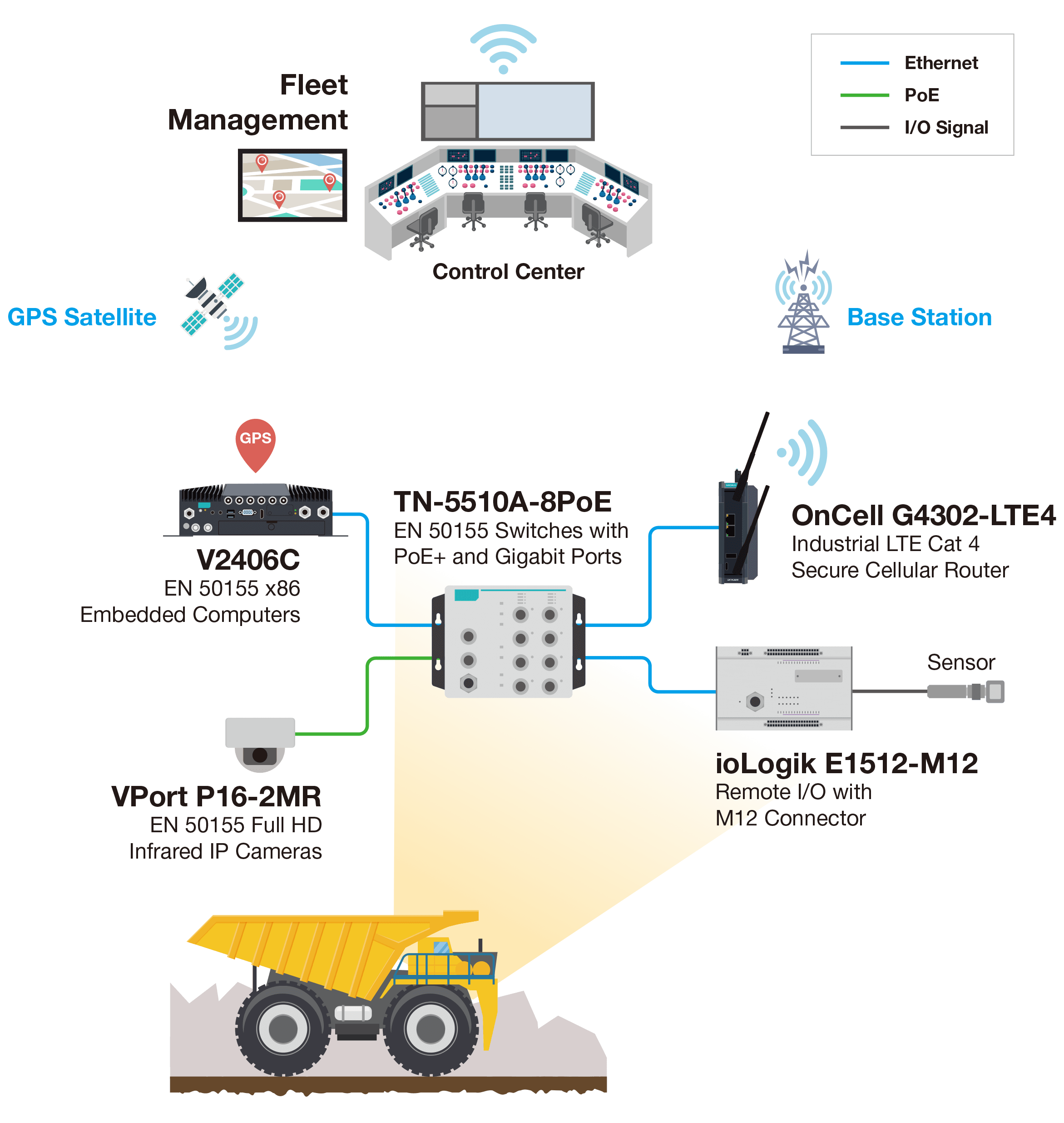

Real-time Video Streaming and Monitoring Network for Autonomous Haulage System in Surface Mining

Requirements
  • A reliable cellular communication and networking solution for real-time monitoring of autonomous mining trucks
  • A compact, robust design for on-board equipment that withstands constant vibration and harsh environments
  • PoE switches for powering the powered devices (PDs) on trucks
  • Ease of configuring and diagnosing
Why Moxa
  • High MTBF and five-year warranty
  • Anti-shock and anti-vibration PoE switches, IP cameras, remote I/O, and industrial computers with M12 connectors, all with dust-tight IP rating
  • OnCell LTE cellular router featuring VPN, firewall, and NAT functions to protect internal networks from unauthorized access
  • Fanless design that delivers outstanding thermal performance
  • Awarded multiple industry certifications
  • ABC-01 Series configurators offer automatic network configuration backup and restoration, improving maintenance efficiency while reducing system downtime

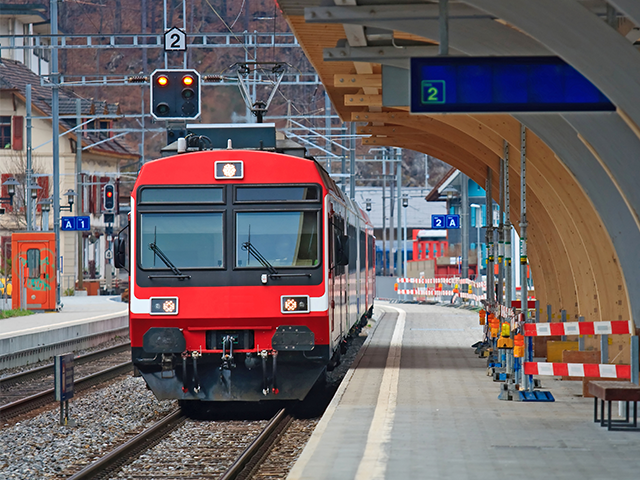

Smart Rail

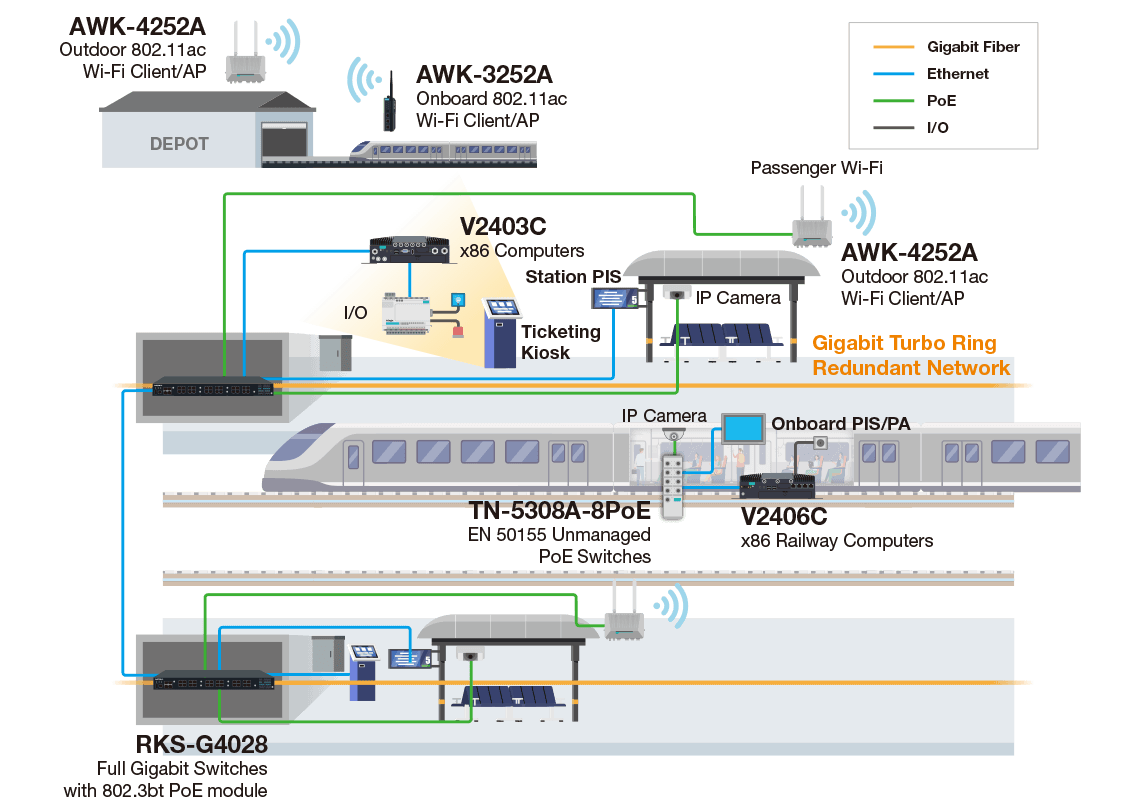

Communication Network for Tramway Ticketing System

Requirements
  • Long-distance data transmission from multiple ticketing kiosks for traffic analysis
  • Redundant network connectivity to ensure uninterrupted system operations
  • Industrial-grade durability to withstand onboard shocks and vibrations
  • Cost-effectiveness
Why Moxa
  • RKS-G4028 Series’ fiber module supports long-distance communication
  • RKS-G4028 Series with optional 802.3bt PoE module supports 90 W power output per port
  • Turbo Ring and Turbo Chain technologies support Gigabit network recovery time of less than 50 ms at 250-switch load
  • RKS-G4028 Series features a wide operating temperature range from -40 to 75˚ C
  • EN 50121-4 certified to withstand extreme wayside conditions
  • Complete communication networks with network infrastructure, edge connectivity, and computing solutions to ensure interoperability and reduce system integration costs

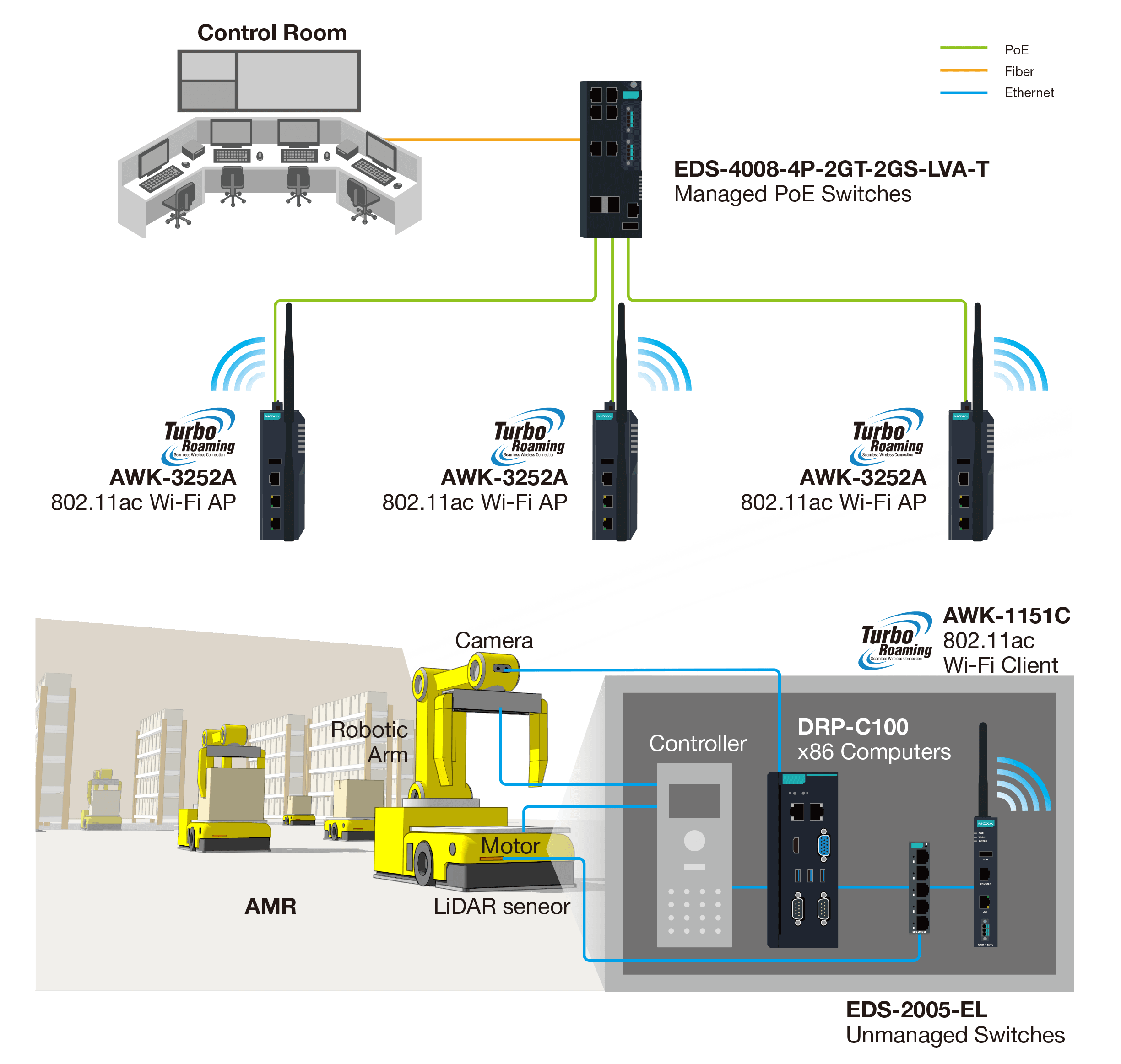

Smart Warehousing

Seamless Power and Data Delivery in Unmanned Warehouses with PoE

Requirements
  • High power output to support numerous wireless APs
  • Enhanced AMR efficiency through fast data transmission across both wired and wireless networks
  • Compact design suitable for machine installation
  • Dependable performance with strong vibration and EMI noise resistance
Why Moxa
  • The EDS-4008 Series provide up to 90W per port with PoE++ capability, delivering ample power for multiple wireless APs.
  • The EDS-4008 Series offer full GbE uplinks with options for 2.5G SFP modules, ensuring high-bandwidth connectivity suitable for intensive data transmission needs.
  • Compact, robust design for easy machine integration and enhanced EMC and RF protection
  • Support 802.11ac performance and include Turbo Roaming technology, enabling seamless millisecond-level handovers for uninterrupted wireless connectivity.
  • The UN model adheres to multi-region RF certification compliance, ensuring broad usability and regulatory acceptance across different regions markets.

Oil and Gas

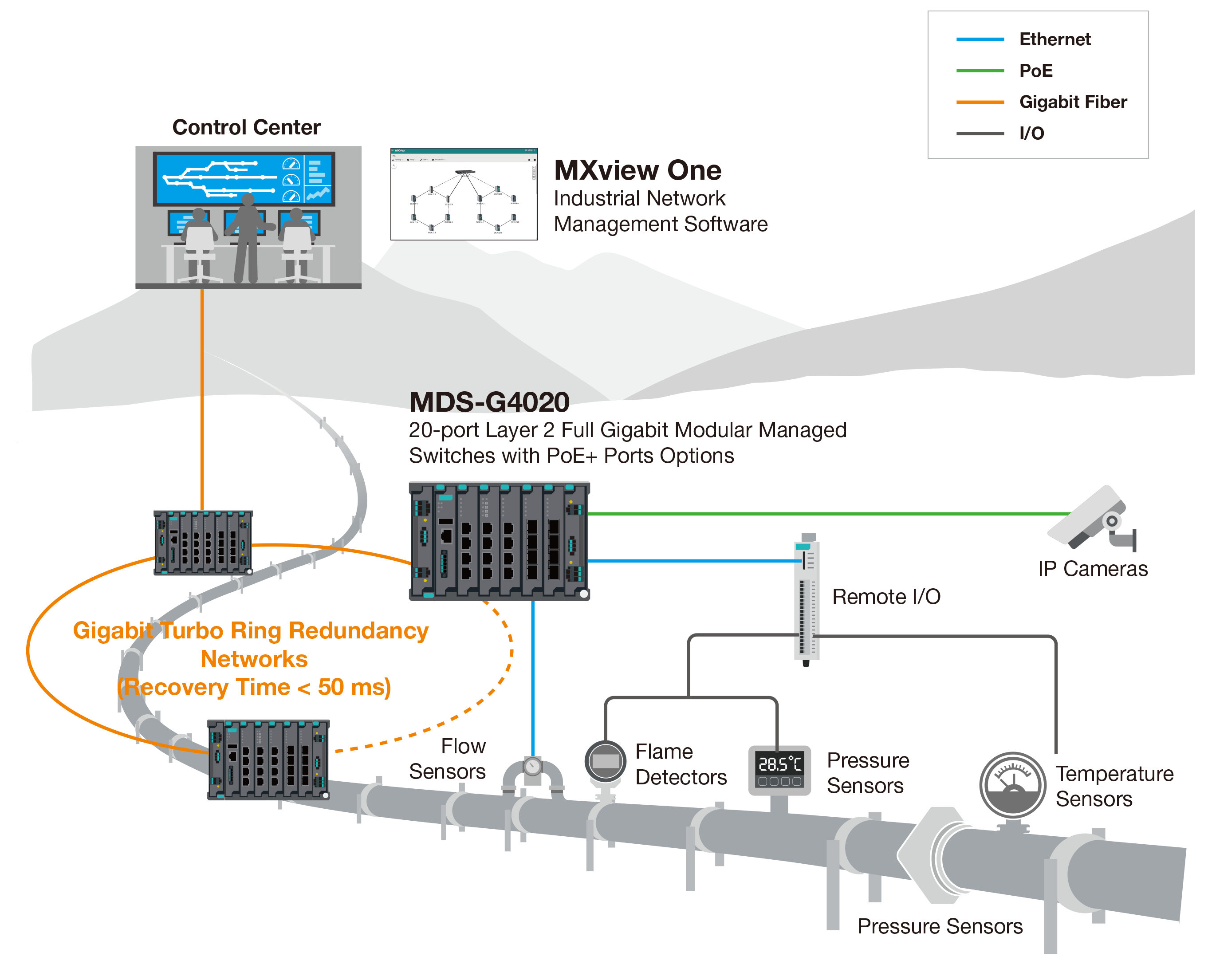

Remote Pipeline Monitoring

Requirements
  • Long-distance Gigabit network backhaul to connect subsystems in the field
  • Reduce power cabling issues for remote IP cameras and other PDs
  • Reliable, high-density Ethernet switches with multiple interfaces that can aggregate real-time video, voice, and data from remote subsystems
  • Resilient industrial-grade devices that can operate in harsh conditions
  • A DIN-rail design to fit inside cabinets
Why Moxa
  • Modular switches with fiber interfaces to connect pipeline subsystems to the remote control center over long distances
  • Adequate PoE power supply
  • Gigabit Turbo Ring supports network recovery time less than 50 ms
  • Fanless, compact, and rugged ATEX Zone 2-and C1D2-certified design featuring DIN-rail installation
  • MXview One Series networking management software offers real-time monitoring of network status from the control center

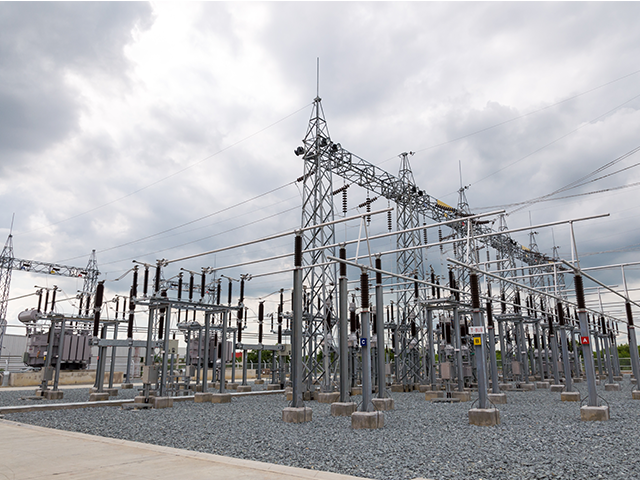

Power Substations

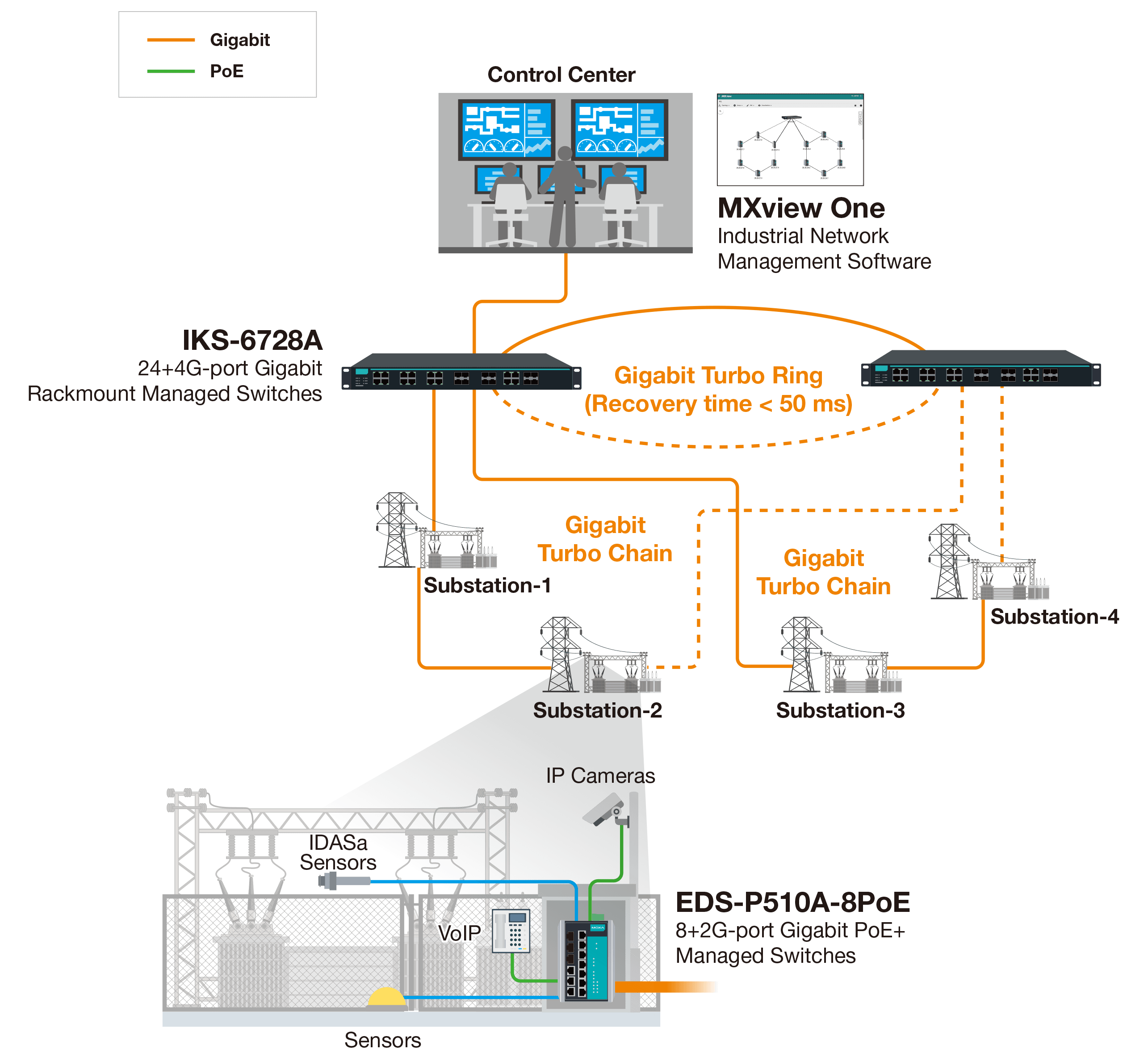

Security Monitoring Network for Power Substation Access Control

Requirements
  • Millisecond-level recovery networks to connect more than 150 substations nationwide
  • 24/7 reliability for continuous security monitoring
  • Connectivity and availability during EMI and surge conditions
  • Reduce power cabling issues for remote IP cameras and VoIP
  • Real-time monitoring and management to reduce costly visits to remote unmanned locations
Why Moxa
  • EDS-P510A Series PoE switches allow for high bandwidth, long-distance transmission as well as PoE+ power supply to remote powered devices
  • EDS-P510A Series and IKS-G6728A Series support Turbo Ring and Turbo Chain network redundancy
  • Industrial-grade products designed to withstand harsh operating conditions
  • Embedded Smart PoE function enables the EDS-P510A Series PoE switches to detect failures and auto-reboot powered devices to ensure continuous operation

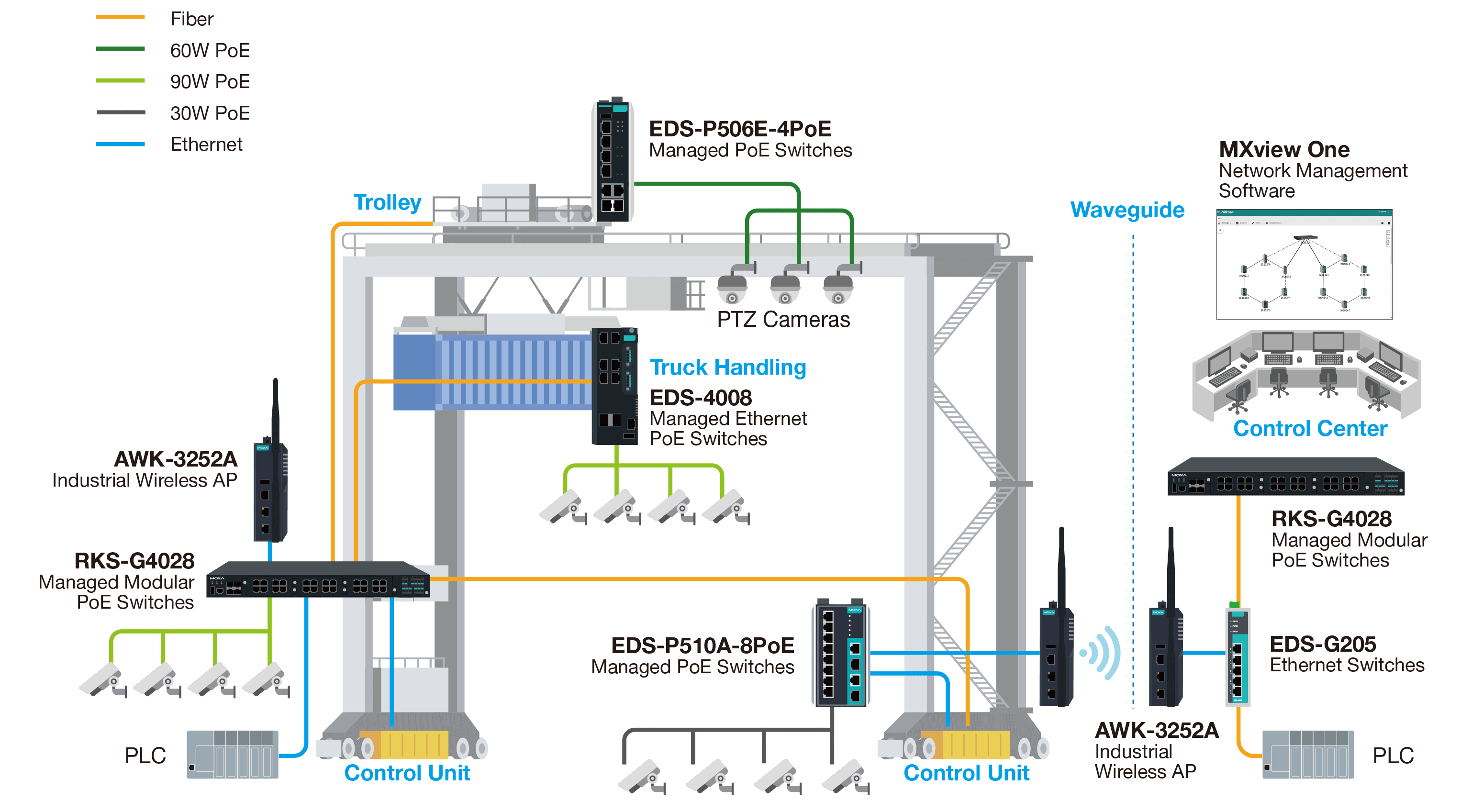

Container Terminal Automation

Reliable PoE Networks for Automated Rubber-tired Gantry Cranes (ARTG)

Requirements
  • PoE switches to overcome wire-deployment obstacles at height or on the ground
  • Each port supplies 60 W power to high-resolution cameras, including PTZ cameras, for accurate container recognition
  • Robust switches must withstand outdoor environments, particularly constant exposure to humid and salt-rich coastal air
  • High-reliability networks to ensure real-time image processing and transmission
  • User-friendly network management software that allows operators to manage the ARTG crane system network remotely and effectively
Why Moxa
  • Comprehensive PoE switches portfolio that satisfies all IP camera power sourcing requirements
  • To power up multiple cameras, the EDS-P506E-4PoE Series supports up to four 60 W PoE ports with a 180 W power budget
  • High EMI protection, a fanless design for harsh outdoor environments, and a wide operating temperature range from -40 to 75°C
  • Smart PoE function supports automatic PD failure detection and rebooting for network recovery, eliminating or minimizing the need for manual inspection or maintenance
  • MXview One Series network management software features real-time visualization of network status to improve ARTG crane system reliability

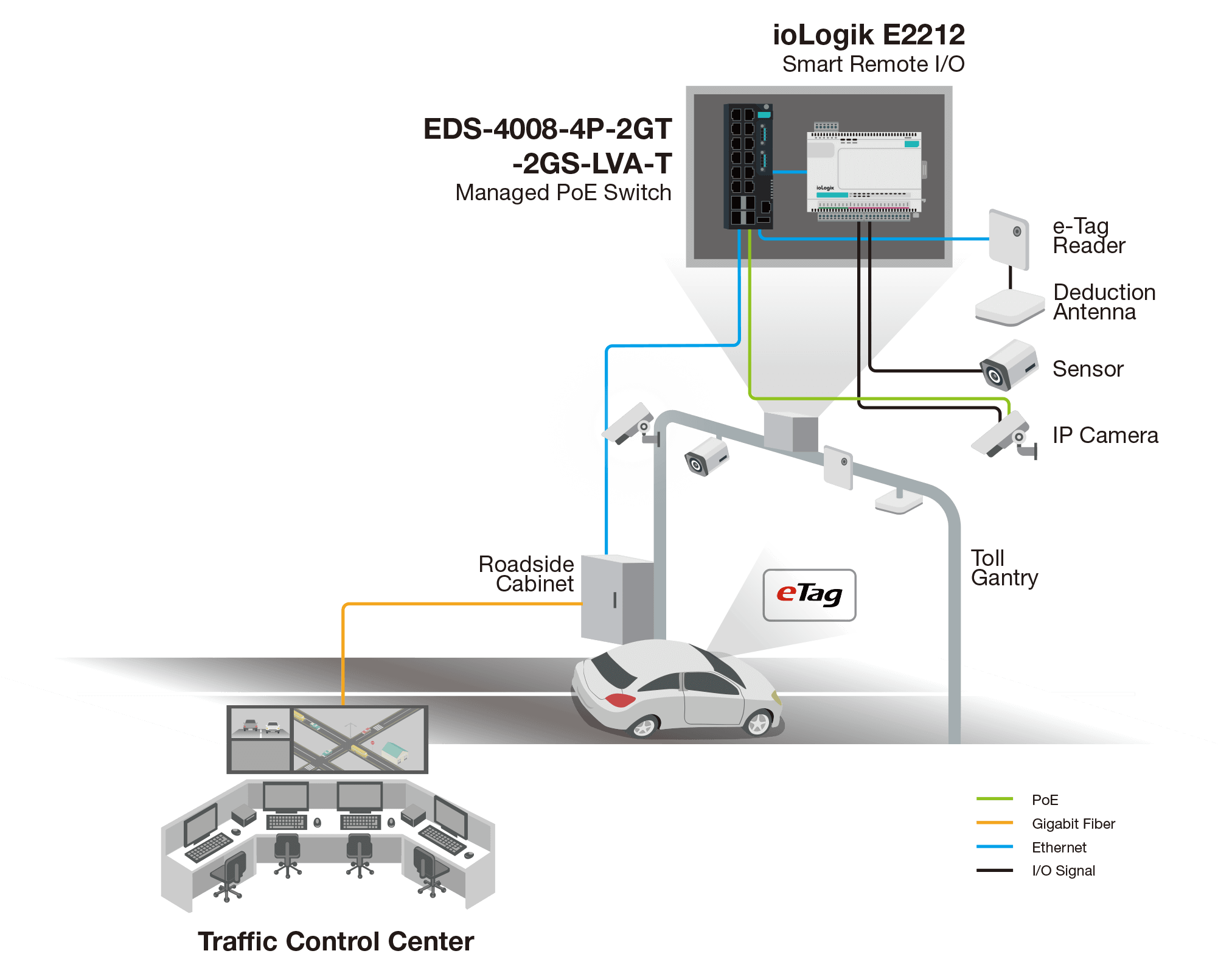

Intelligent Transportation

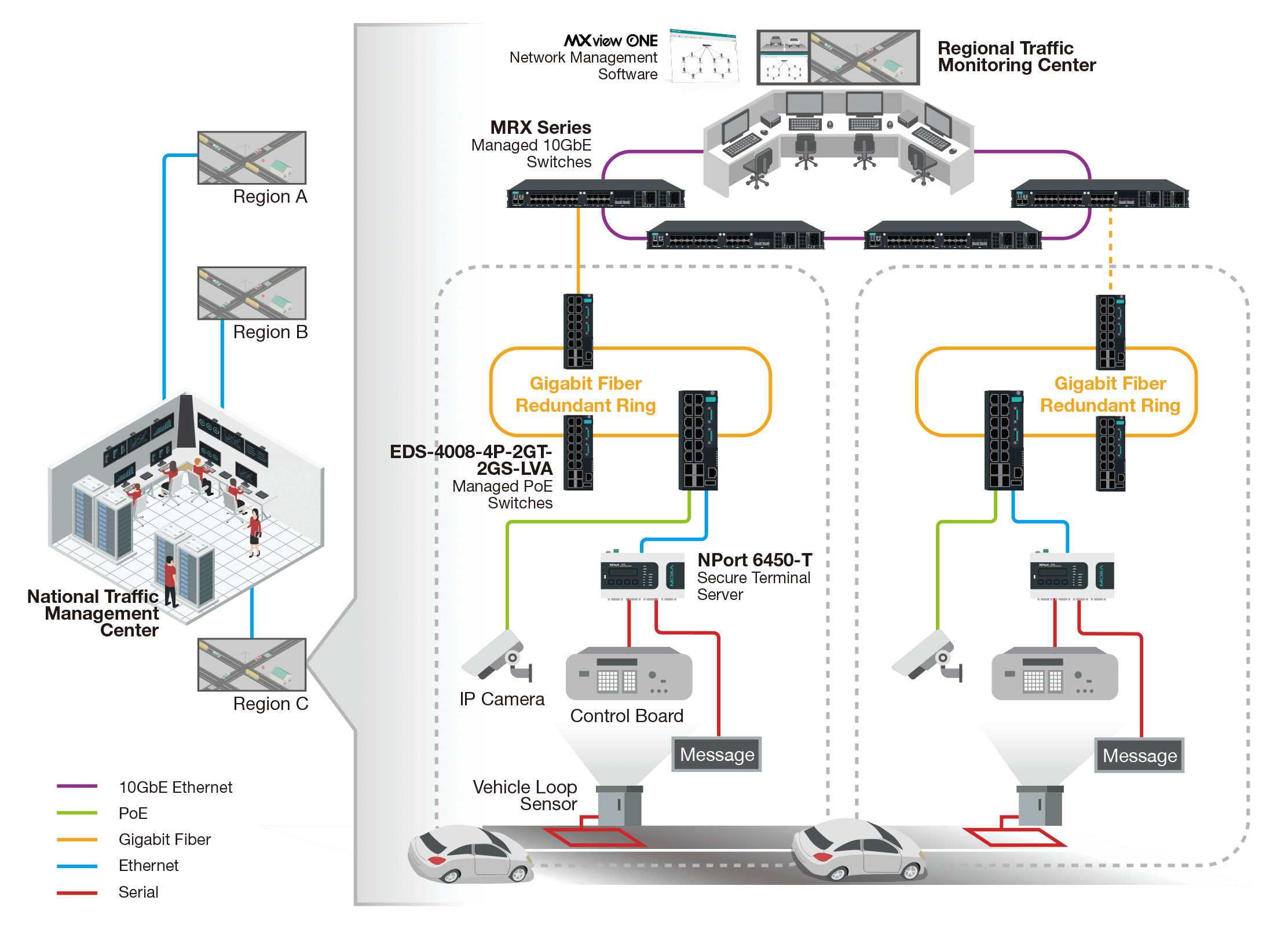

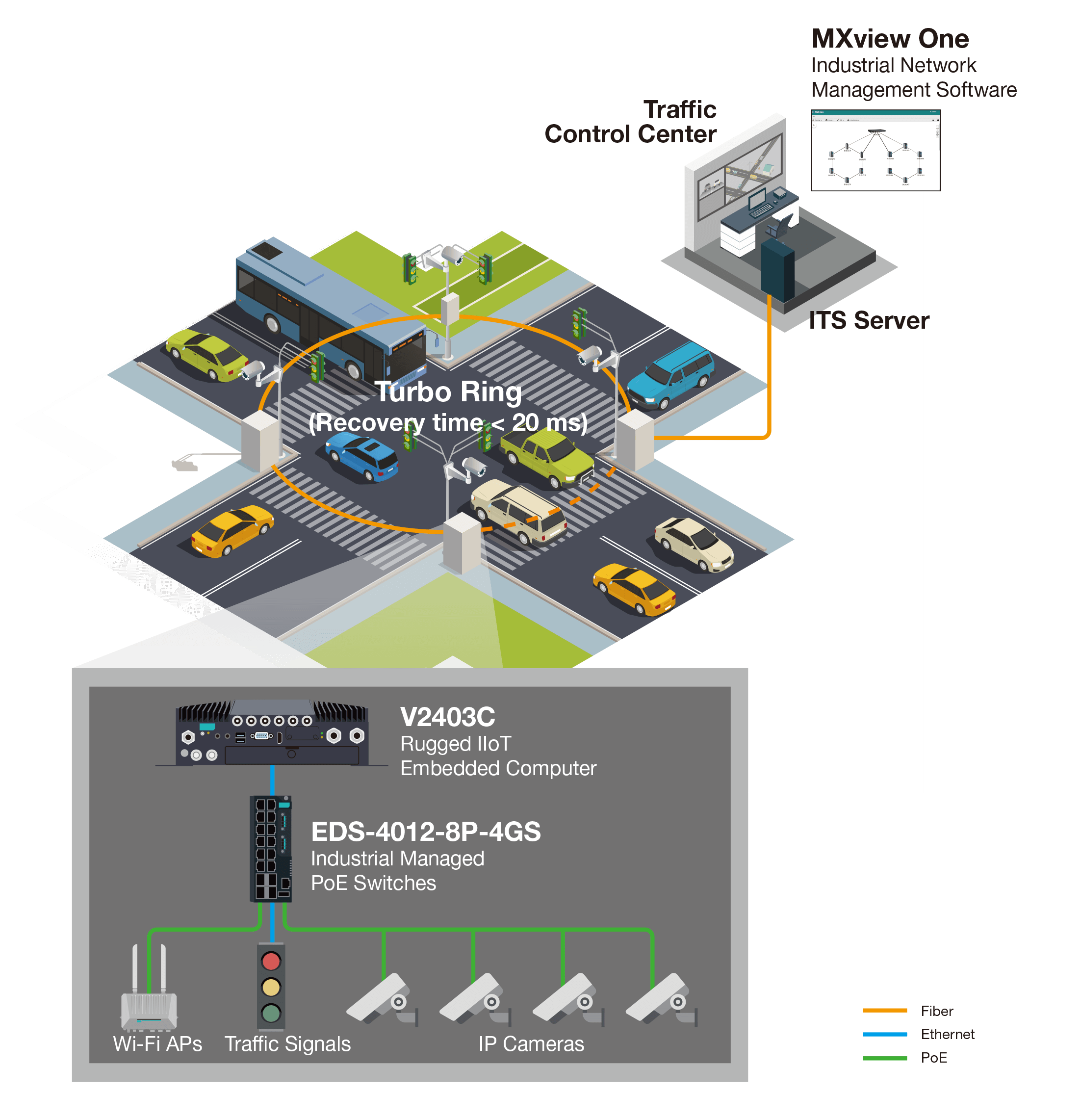

Rugged PoE Networks for Highway Traffic Monitoring

Requirements
  • Network infrastructure with rapid recovery capability to ensure fast data transfer for real-time intersection monitoring
  • High bandwidth for IP surveillance
  • Reduced size and cable to fit the compact roadside cabinet space
  • Easy to mass configure, manage and monitor for efficient troubleshooting across all network devices
  • Survive the extreme outdoor environment
Why Moxa
  • EDS-4008 Series supports full GbE uplinks for high-bandwidth networks (2.5G SFP modules available) and less than 50 ms redundancy (under the Gigabit fiber link) to avoid communication loss.
  • Compact designed EDS-4008 Series can support 802.3bt PoE for up to 90 W output per port for supplying sufficient power to PDs, like, IP cameras, wireless APs, sensors, IP phone... etc.
  • Moxa Smart PoE technology provides PD outage detection and auto-reboot for uninterrupted system availability
  • Centralized network devices configuration and management through MXview One Series
  • Wide range of products from the Serial Device Servers to L3 10GbE switches, to fulfill all communication infrastructural needs
  • NEMA TS2 certification
  • IEC 62443-4-2 SL2 certification for secure network devices

Intelligent Transportation

Ensure ETC Precision with Reliable PoE Communication Networks

Requirements
  • Minimize cabling and equipment on outdoor toll gantries
  • Ensure high-speed, high-bandwidth for data and image transmission
  • Maintain durability for continuous operations
  • Achieve fast I/O scanning rate for accurate sensor signal capture
  • Simple maintenance and monitoring to enable cost-effective remote troubleshooting
Why Moxa
  • The EDS-4008 Series compact PoE++ switches offer with up to 90 W output per port to ensure sufficient power for IP cameras.
  • Support full GbE uplinks for high-capacity networks, with 2.5G SFP options available.
  • Feature Smart PoE for IP camera outage detection and auto-reboot, facilitating remote management.
  • The ioLogik E2212 Smart I/O delivers rapid I/O scanning rates below 4 ms, enhancing data accuracy.
  • Operate reliably in extreme temperatures from -40 to 75°C for uninterrupted service.
  • NEMA TS2 certification
  • IEC 62443-4-2 SL2 certification for secure network devices

Intelligent Transportation

Smart City Traffic Improvement with Intelligent Transportation System

Requirements
  • Effective traffic management solution for communication between vehicles, operators, and onsite control stations
  • Remote monitoring as part of onsite failure detection
  • Real-time data collection from various roadside sensors
  • Robust design that withstands the harsh outdoor environment
Why Moxa
  • Comprehensive solution for real-time response
  • Moxa’s V2403C Series is a cutting-edge computing platform that acts as a roadside unit (RSU) for collecting data from sensors and surveillance videos from cameras. Via Moxa’s EDS-4012 Series managed switches, it also serves as a bridge between edge computing devices and the ITS server for real-time communication
  • Moxa’s EDS-4012 Series managed PoE switches supply adequate power to IP cameras for surveillance and to Wi-Fi APs for municipal free internet service
  • Moxa’s Turbo Ring technology ensures a network recovery time of less than 20 ms and STP/ RSTP/MSTP offers network redundancy, thereby helping maintain stable networks for real-time communication
  • Industry certified for secure and stable operation under harsh conditions

Intelligent Transportation

High-Density PoE Connections for Continuous Operations in Public Transport Interchange

Requirements
  • A switch hub capable of flexible expansion and can cater to various combinations to accommodate a variety of surveillance devices
  • High PoE output to support numerous IP cameras
  • Durable for continuous operations around the clock
  • Simplified configuration, maintenance, and backup processes for efficient operation
  • Compliance with IEC cybersecurity standards
Why Moxa
  • The RKS-G4028 Series boasts modular interfaces and high-density PoE connections, accommodating diverse connectors from Fast Ethernet to Gigabit networks, with support for up to 28 Gigabit ports, making this series ideal for comprehensive surveillance setups, including cameras, ticketing systems, security alarms, and emergency call-out systems.
  • Moxa's Smart PoE functionality enhances operational reliability through PD outage detection and automatic reboot capabilities, facilitating rapid PD operational status assessments.
  • Devices are certified under IEC 62443-4-2 SL2, guaranteeing a high level of security for network devices

Intelligent Transportation

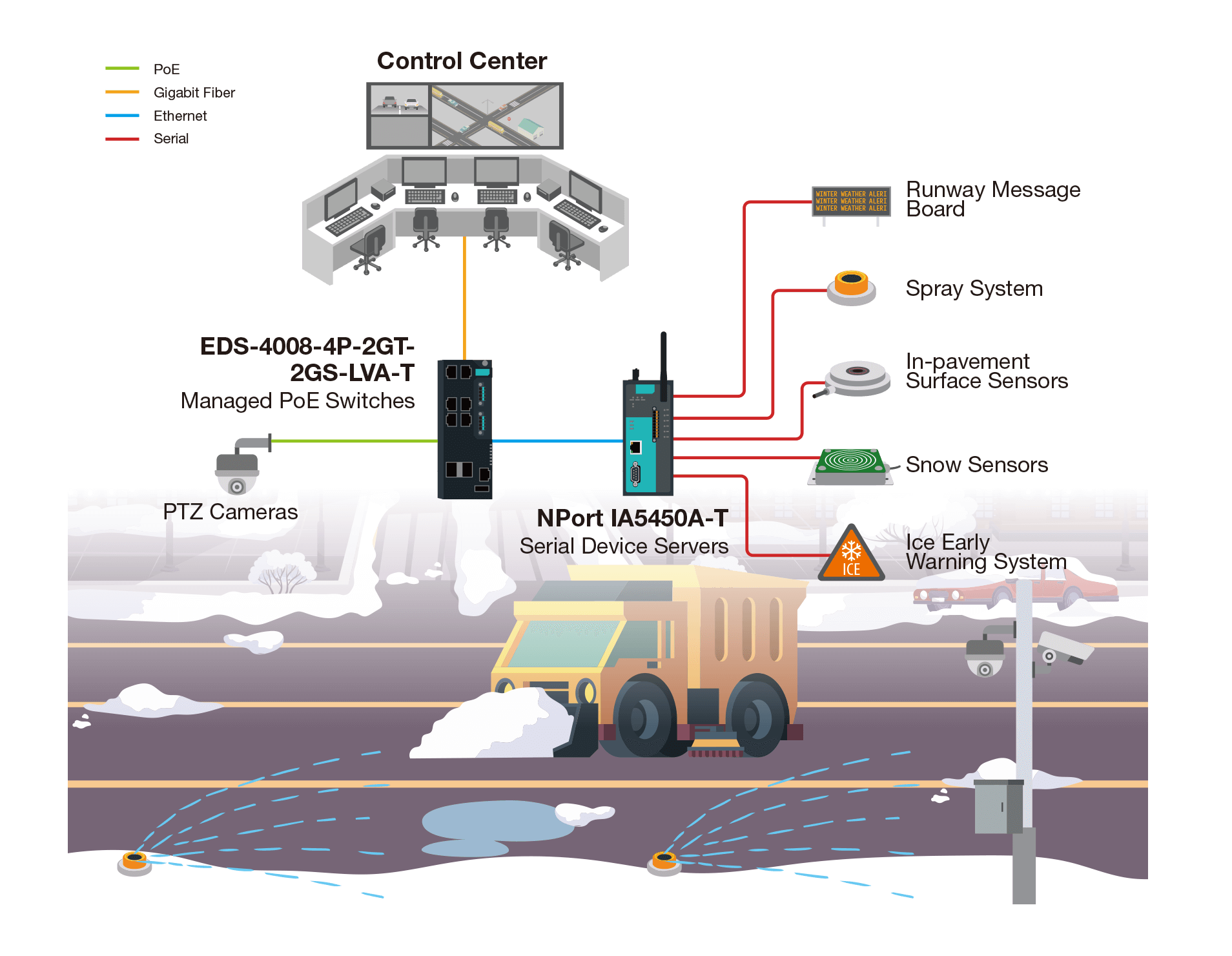

Enable Uninterrupted Runway De-icing System Communications with Robust PoE

Requirements
  • Operation under extreme low-temperature outdoor environments.
  • Reliable, high-power output for PTZ cameras.
  • Real-time data transfer and video streaming for effective monitoring and enhanced road safety in winter.
  • Durable design with serial connectivity for a variety of on-site sensors and equipment using serial protocols.
Why Moxa
  • Designed to withstand extreme temperatures ranging from -40 to 75°C, well-suited for 24/7 operation in harsh winter conditions.
  • The EDS-4008 Series offer a compact solution with PoE++ support, delivering up to 90 W per port, ensuring ample power for PTZ cameras
  • With full GbE uplinks (2.5G SFP modules available), the EDS-4008 Series is capable of supporting high-bandwidth networks.
  • Moxa's Smart PoE technology enhances system reliability through PD outage detection and automatic reboot, facilitating rapid operational status checks for PTZ cameras and other powered devices.
  • NPort IA5000A Series provides high density serial connectivity and 2 kV isolation for serial signals.

지능형 교통 시스템을 위한 PoE 통신 네트워크


Resources and Videos

Featured Article

PoE로 산업 시스템에 전력 공급하기 전 고려해야 할 다섯 가지 핵심 포인트



Application Note

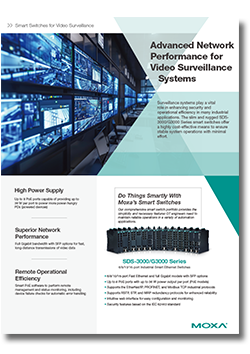

비디오 감시 시스템을 위한 고급 네트워크 성능


PoE 감시 네트워크 설계를 위한 3가지 핵심 고려사항

설치 환경에 따른 PoE 스위치 선택 고려사항

White Paper

산업용 PoE 스위치를 통한 안정적인 옥외 IP 감시 네트워크 구축
